Who am I?

• Andrew Turner / @ajturner
• http://highearthorbit.com

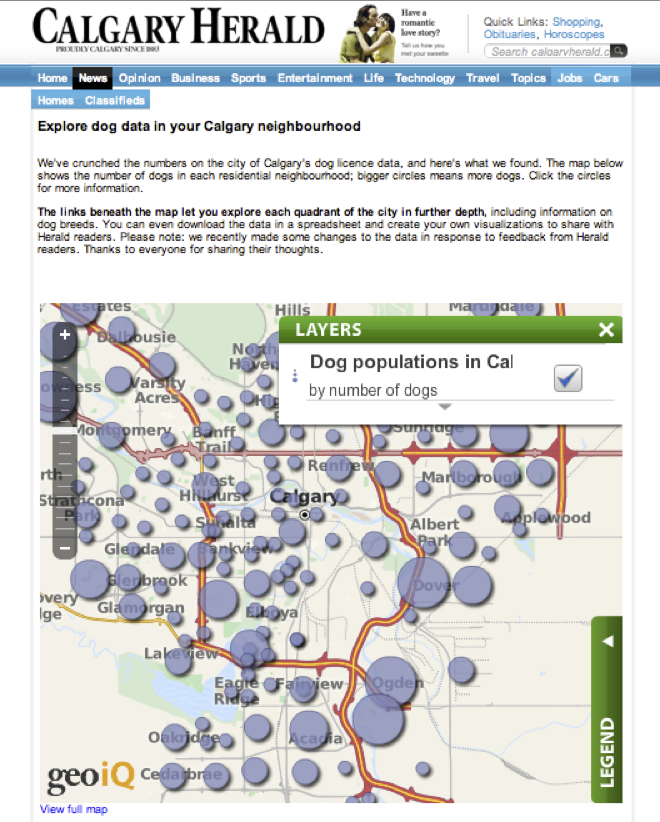

Calgary Herald - Dog Population

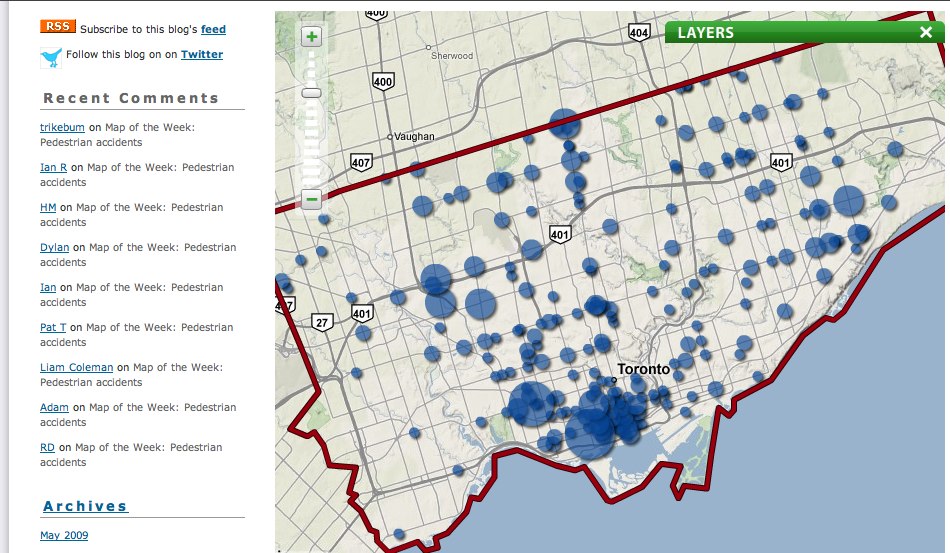

Toronto Sun - Pedestrian Accidents

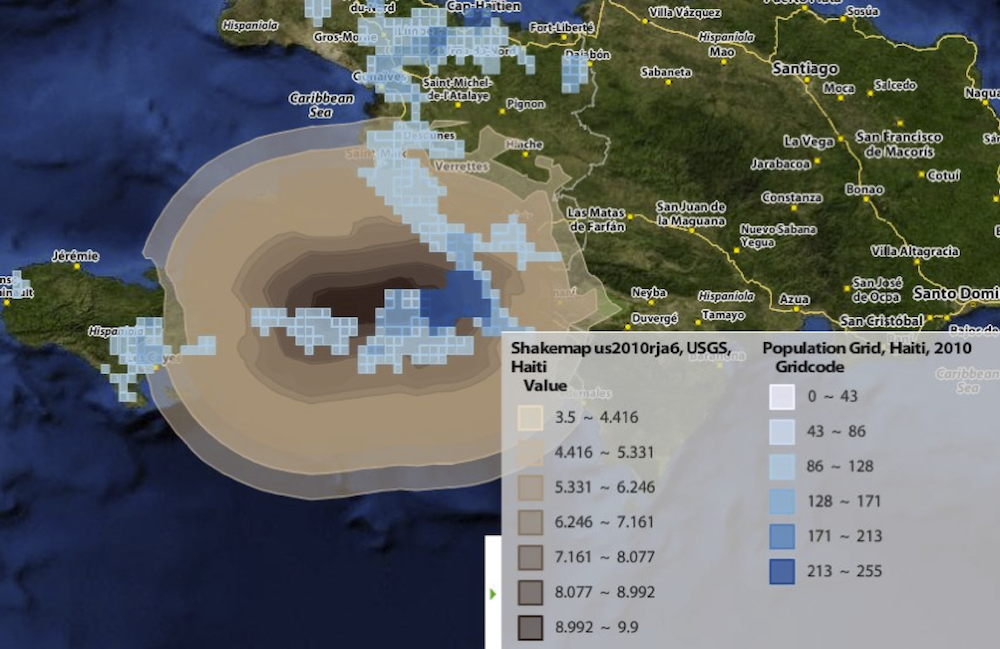

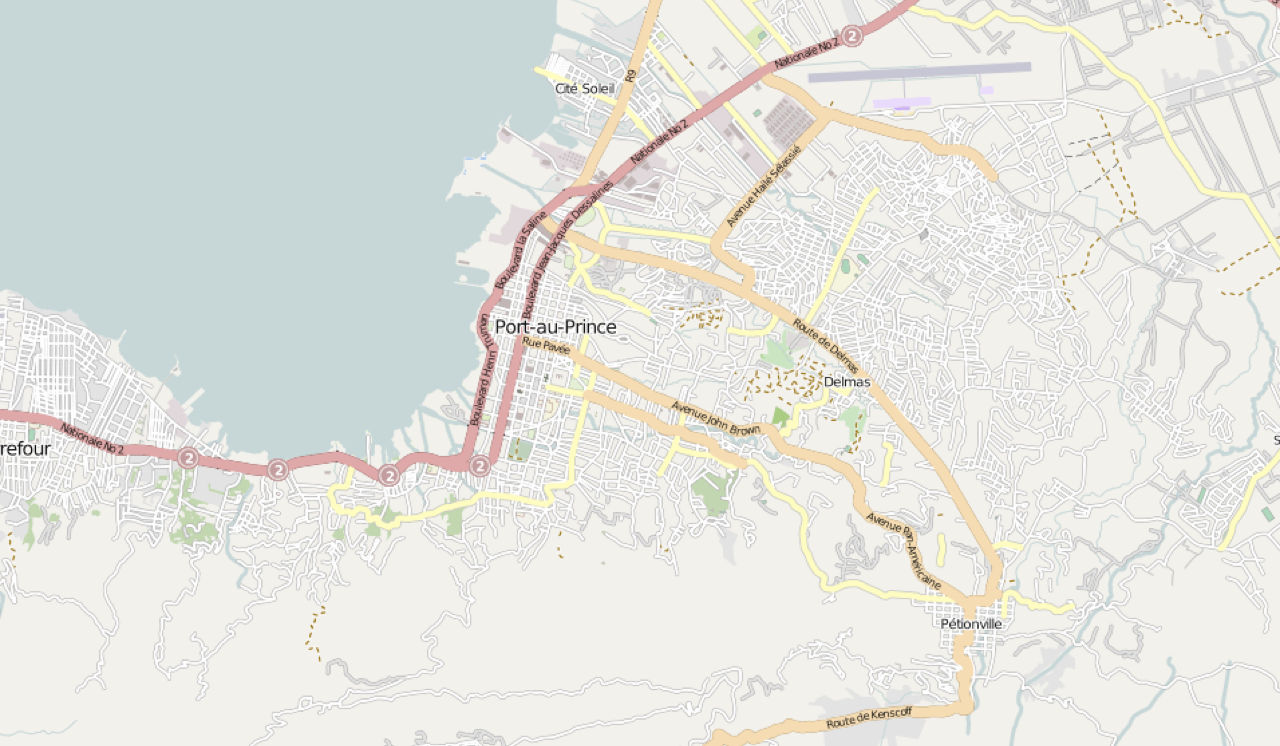

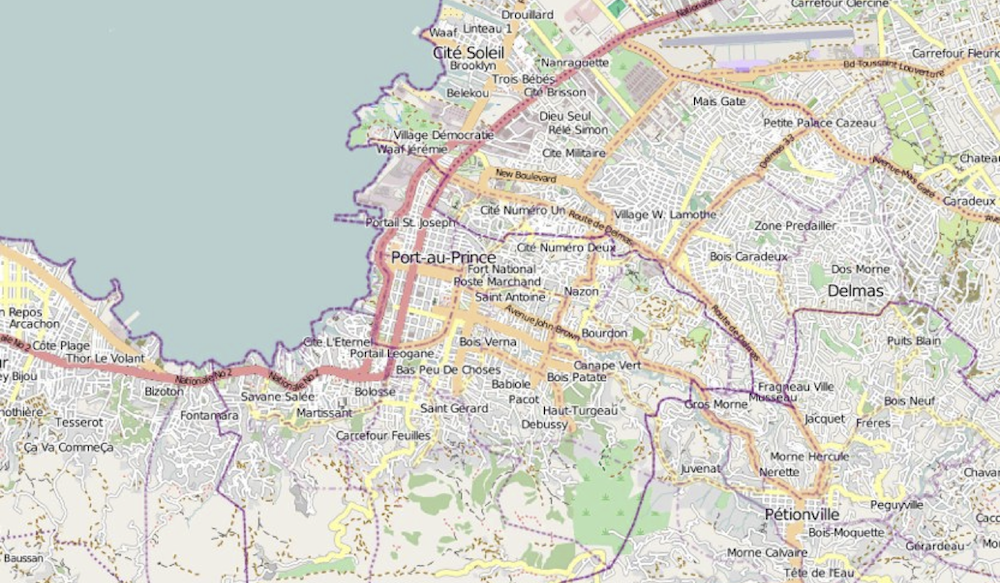

OpenStreetMap Haiti

Basic Principles

• Open Access to data
• Visualize on maps
• Analyze questions

Huffman's Principles of Data Sharing

1. Create immediate value for anyone contributing data
2. Make contributor’s data available back to them with improvements
3. Share derivative works back with the data sharing community

Points

{ "type": "Point", "coordinates": [100.0, 0.0] }

Lines

{ "type": "LineString",
  "coordinates": [ [100.0, 0.0], [101.0, 1.0] ]
  }

Polygons

{ "type": "Polygon",
  "coordinates": [
    [ [100.0, 0.0], [101.0, 0.0], [101.0, 1.0], [100.0, 1.0], [100.0, 0.0] ]
    ]
 }

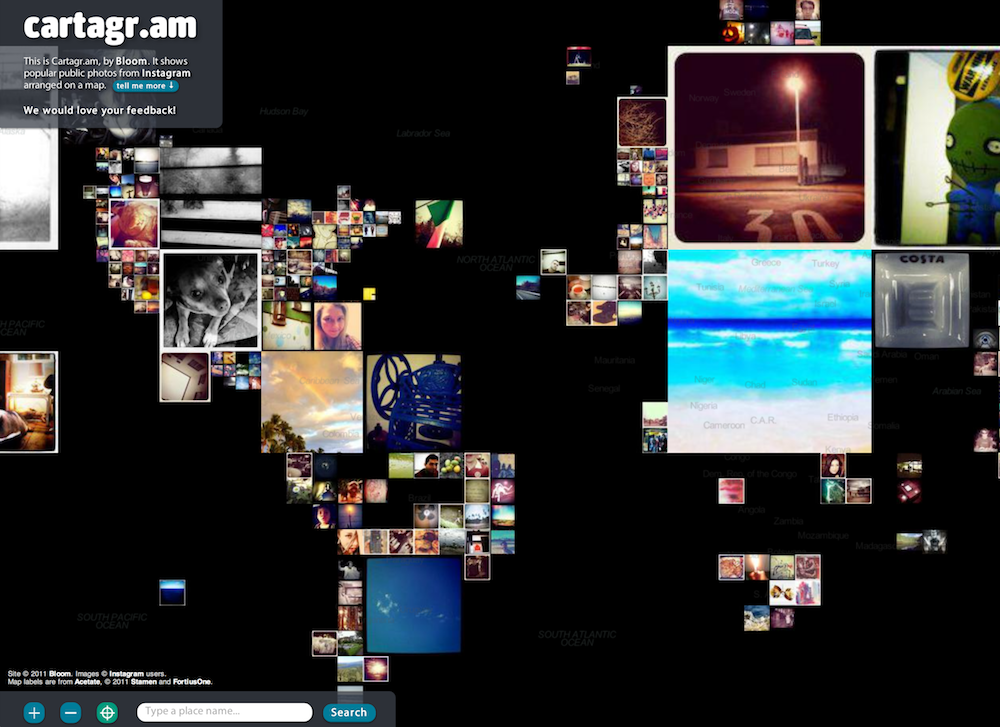

Twitter

Visualize

Let's Builds some Maps.

1. Upload Data (and clean it up)
2. Find and Download Data
3. Explore cartographic styling
4. Embed and Share

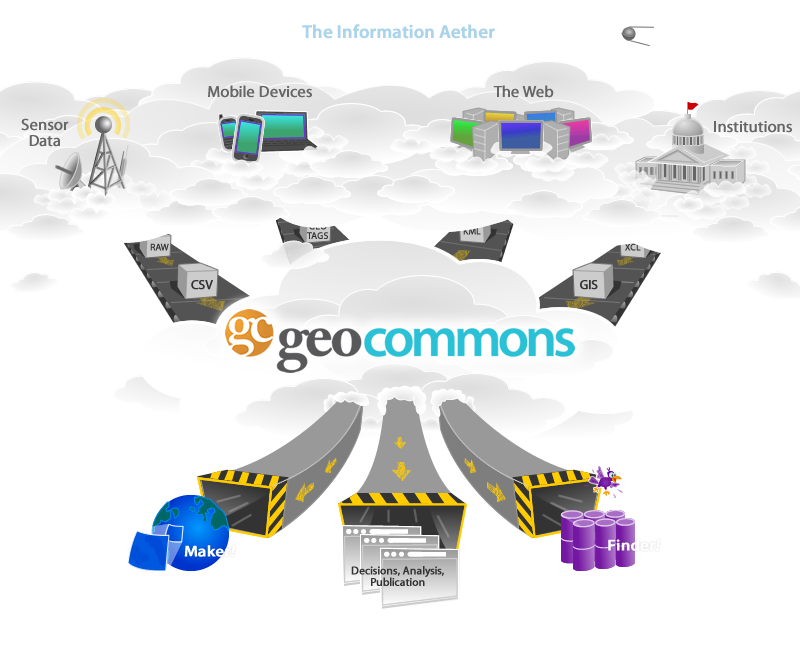

GeoCommons

Mapping Data

1. Visit 596acres.org and download their spreadsheet
2. ...or just get the URL to the CSV
3. Upload the file or register the URL at GeoCommons.com
4. Walk through the process. You could do this in the map, but we have time...
5. Choose "Map Data"
6. Choose to Style by Color or Size
7. Embed in facebook

check out geocommons.com/maps/196311

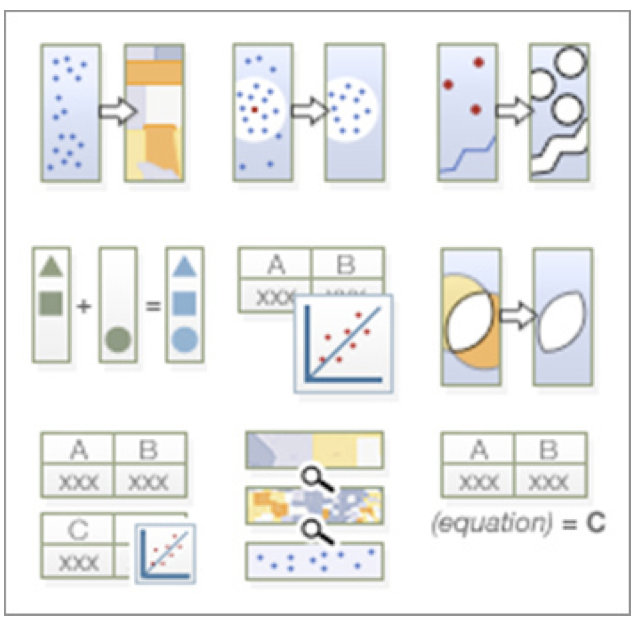

Analyze

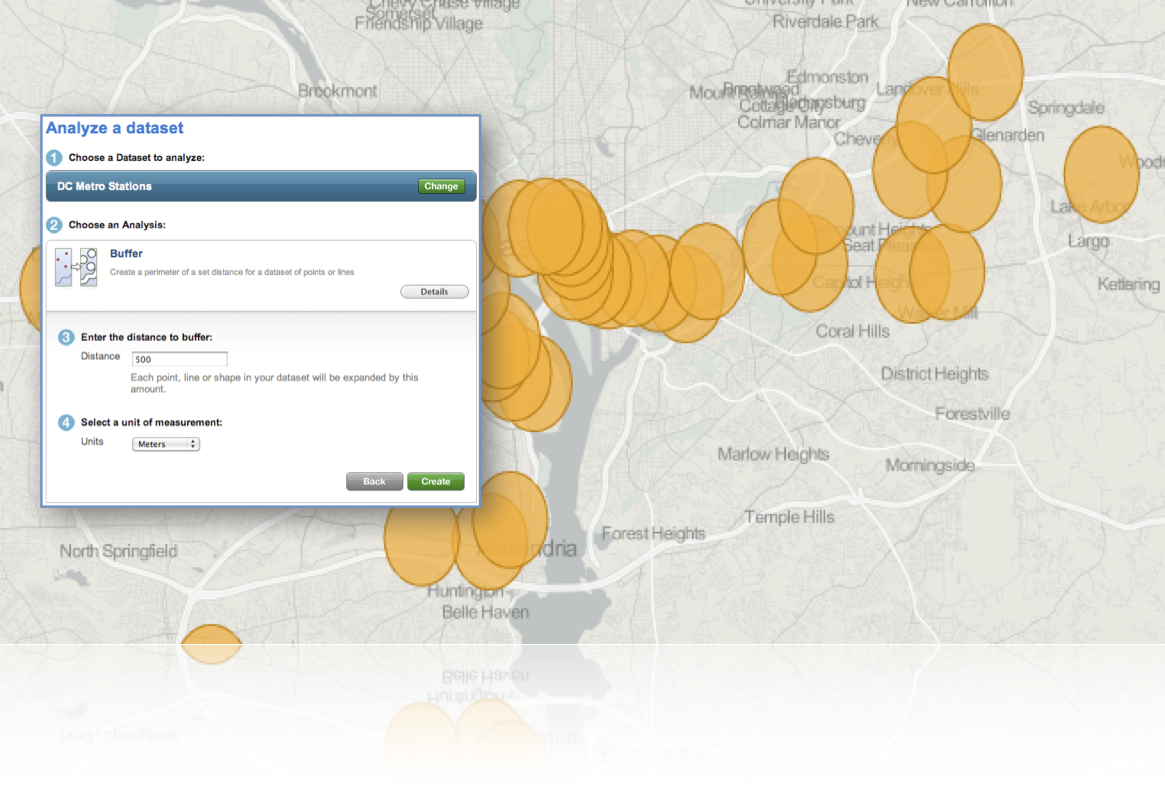

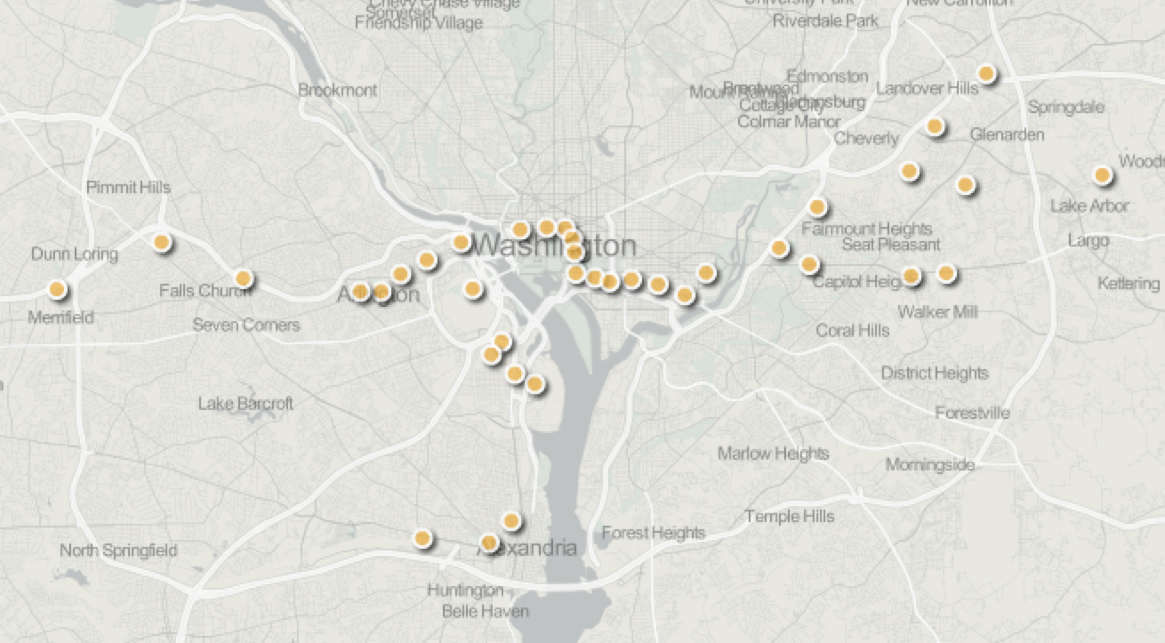

Buffer

Radius buffer from a point, line or polygon

Buffer

Radius buffer from a point, line or polygon

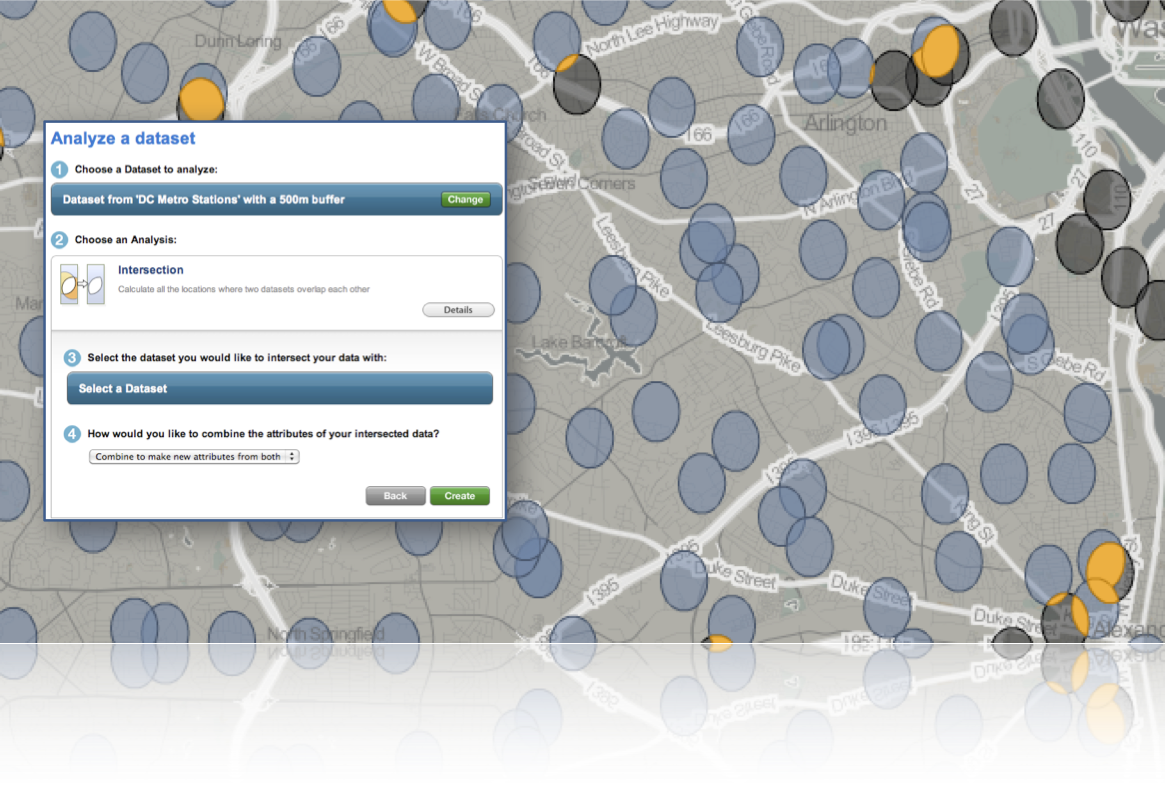

Intersection

Overlap between two polygonal areas, lines or points

Intersection

Overlap between two polygonal areas, lines or points

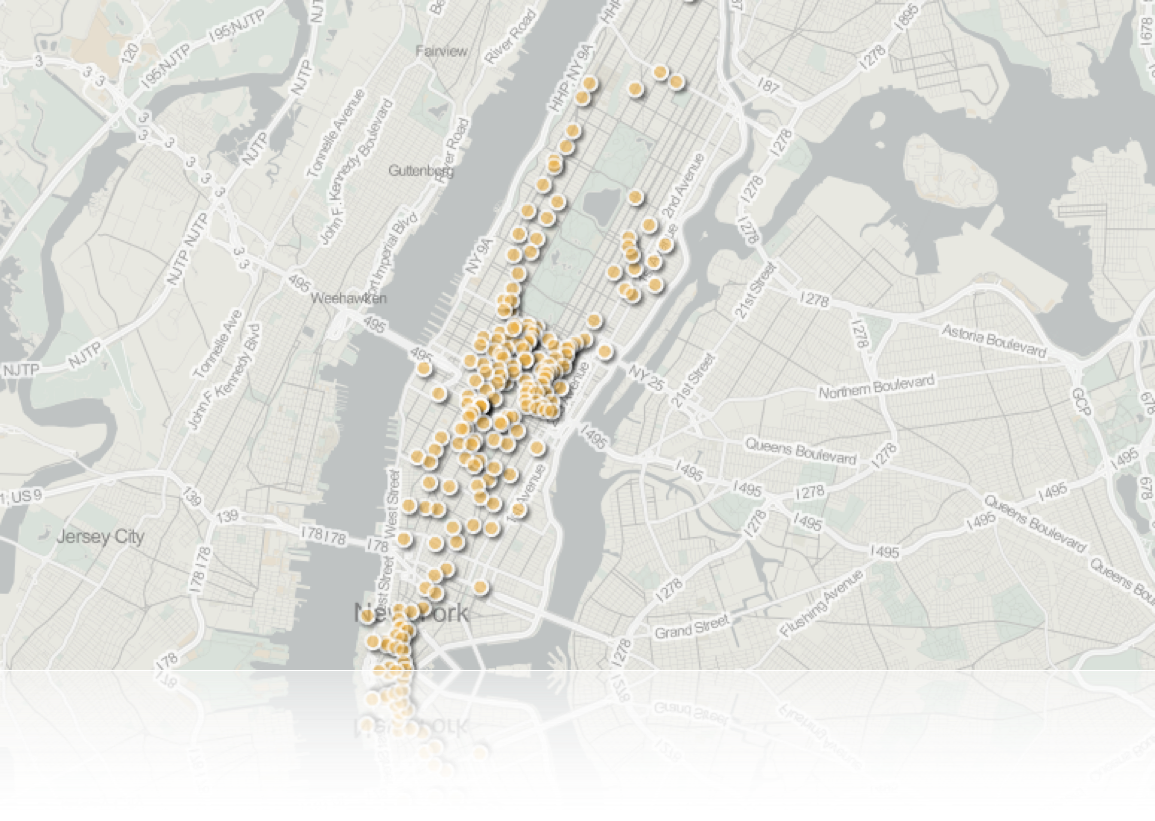

Aggregation

Group data by arbitrary geographic boundaries

Aggregation

Group data by arbitrary geographic boundaries

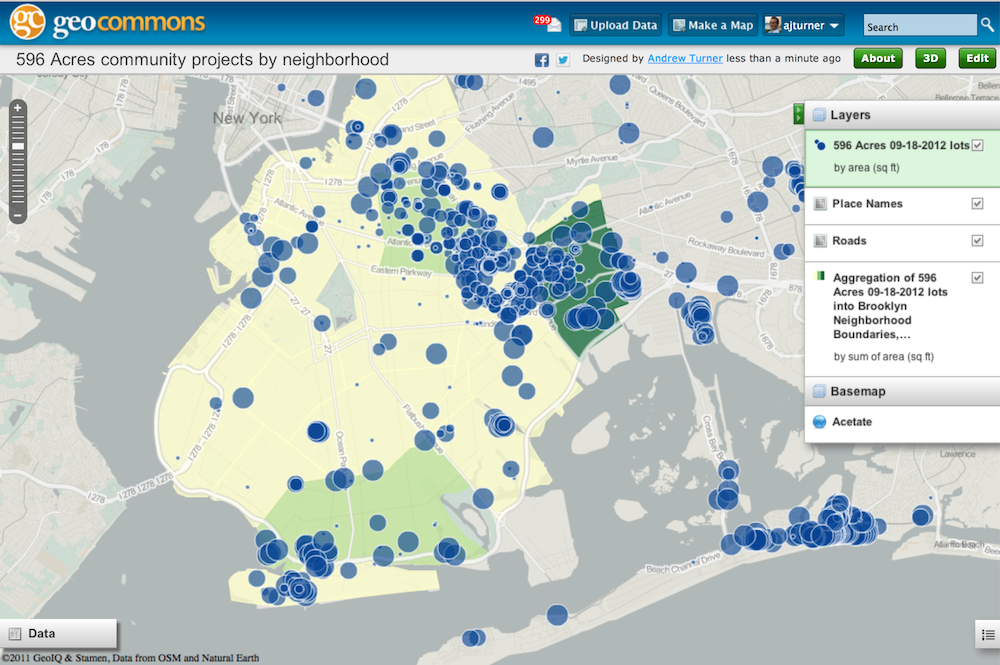

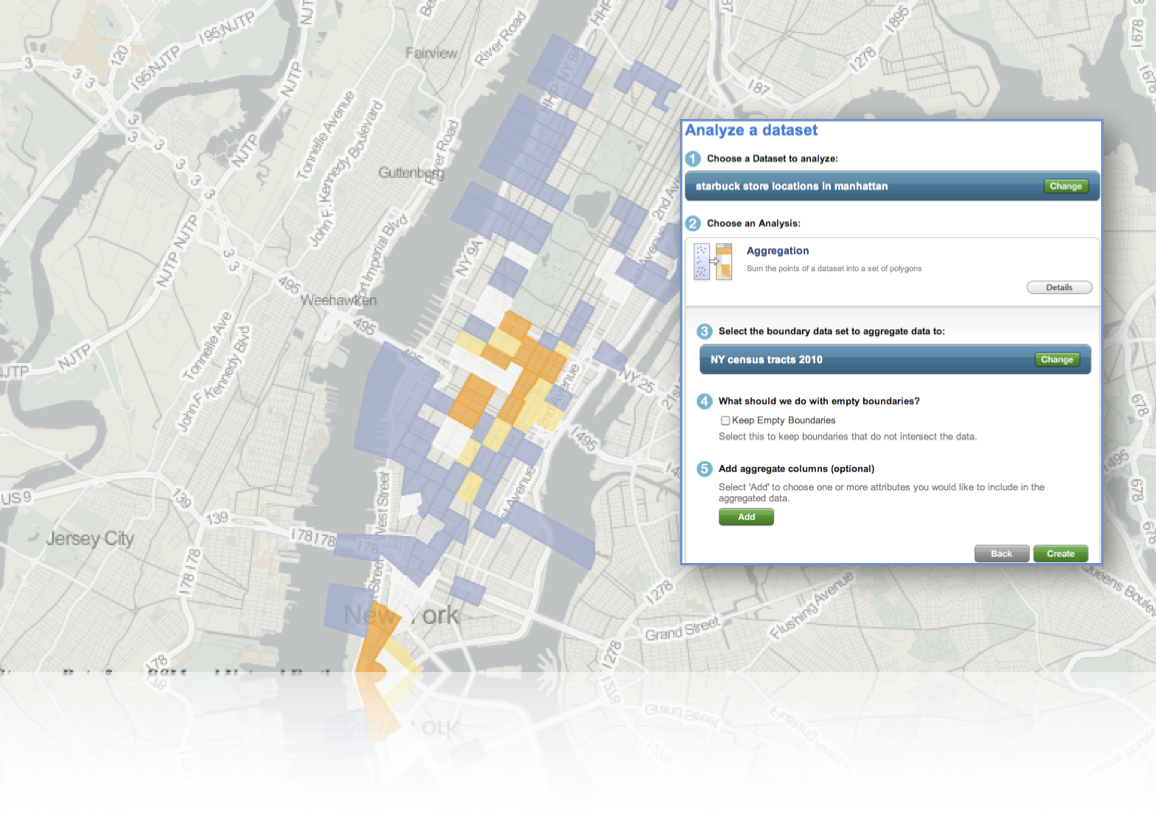

Analyzing your Data

1. Continuing from the "596 Acres map layer"...
2. Click on the layer, choose 'Analyze'
3. Choose "Aggregation"
4. Change Boundary, Search for "NYC Boundary"
5. Choose "Brooklyn Neighborhood Boundaries"
6. Add "Area (sq ft.)" Average and "Area (sq. ft.)" Sum
7. After it finishes processing, choose to style color by "Sum of area".
8. Re-order the layers and play with styling.

check out geocommons.com/maps/196311

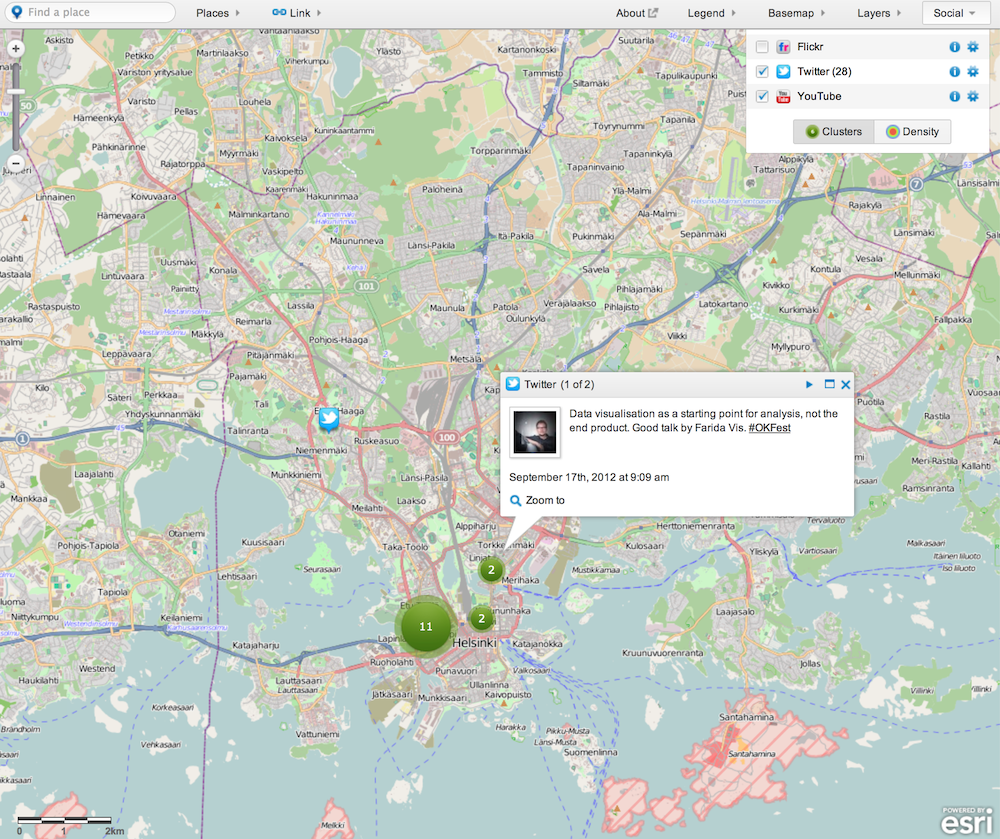

How to create the dashboard

1. Start with the example map
2. Customize & Save as...
3. Turn Sharing on
4. Download the Social Media dashboard code
5. Edit the config file - change the search terms
6. Put it on a webserver

More for Developers

Mapping Tools

• Mapstraction
• Leaflet

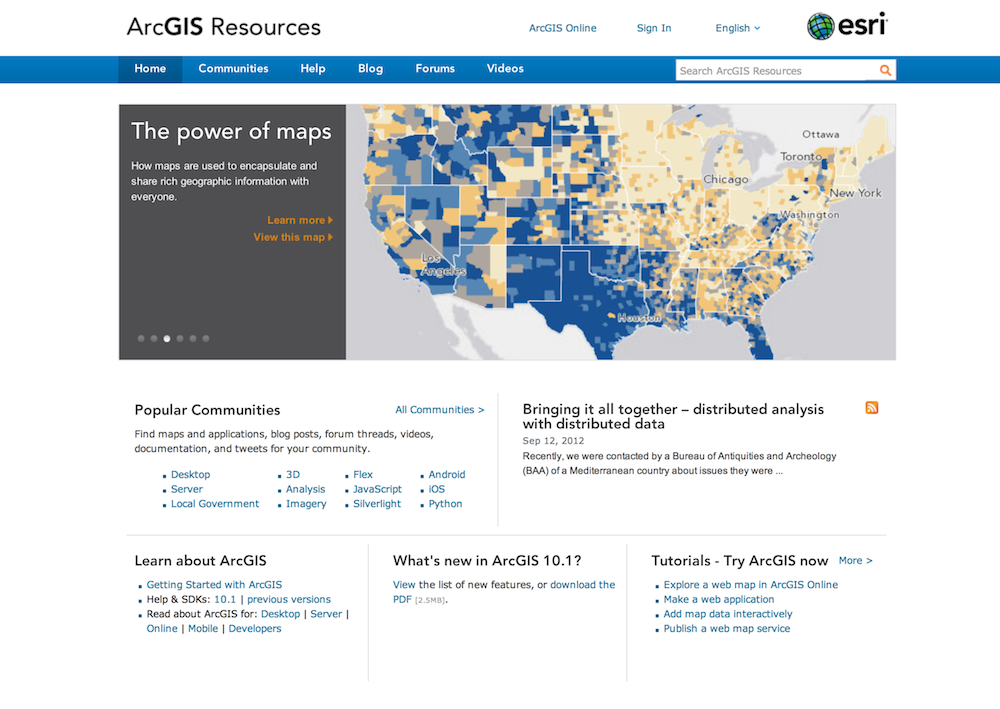

• esri.js examples
• GIS Developer Resources
• ajturner.github.com/geodata-workshop
